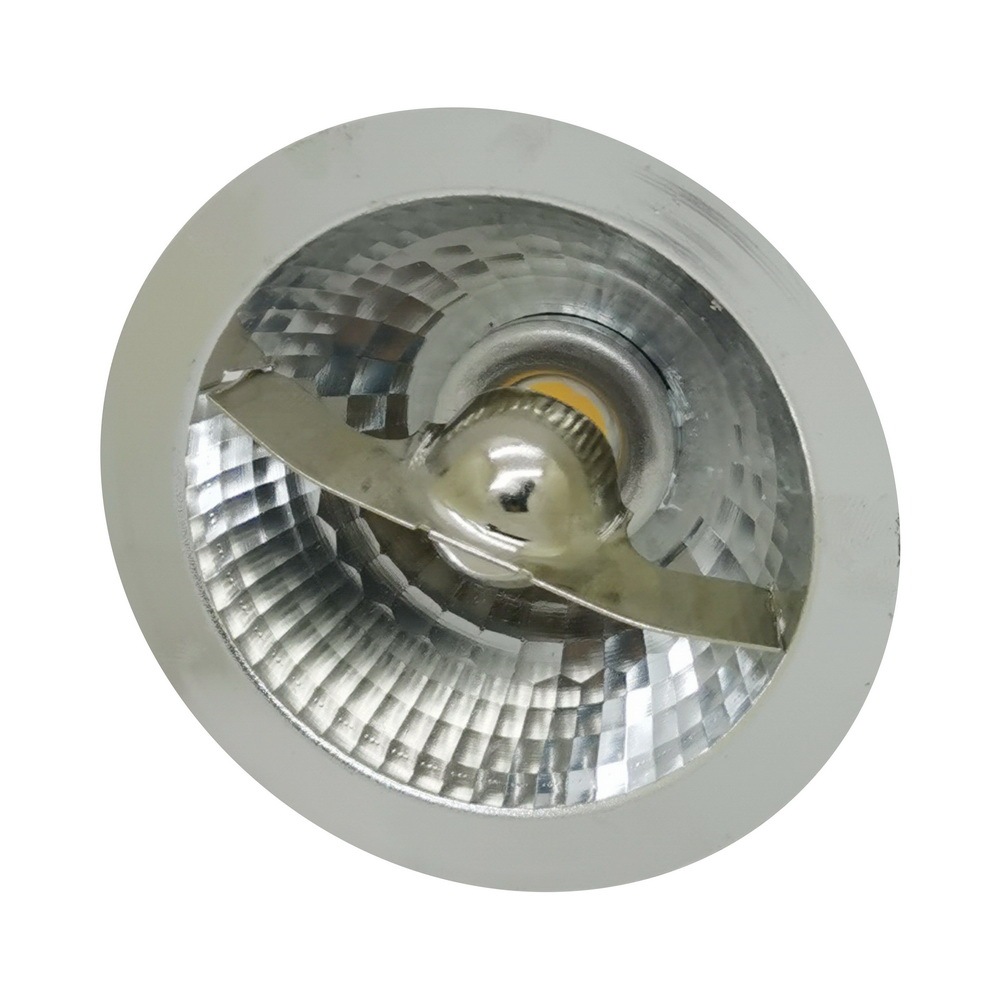

Aluminum LED AR70 Spot Light Bulb COB 5W AC/DC 12 Volts BA15d (anti-vibration)

Basic Parameters

• Housing Material: pure Aluminum

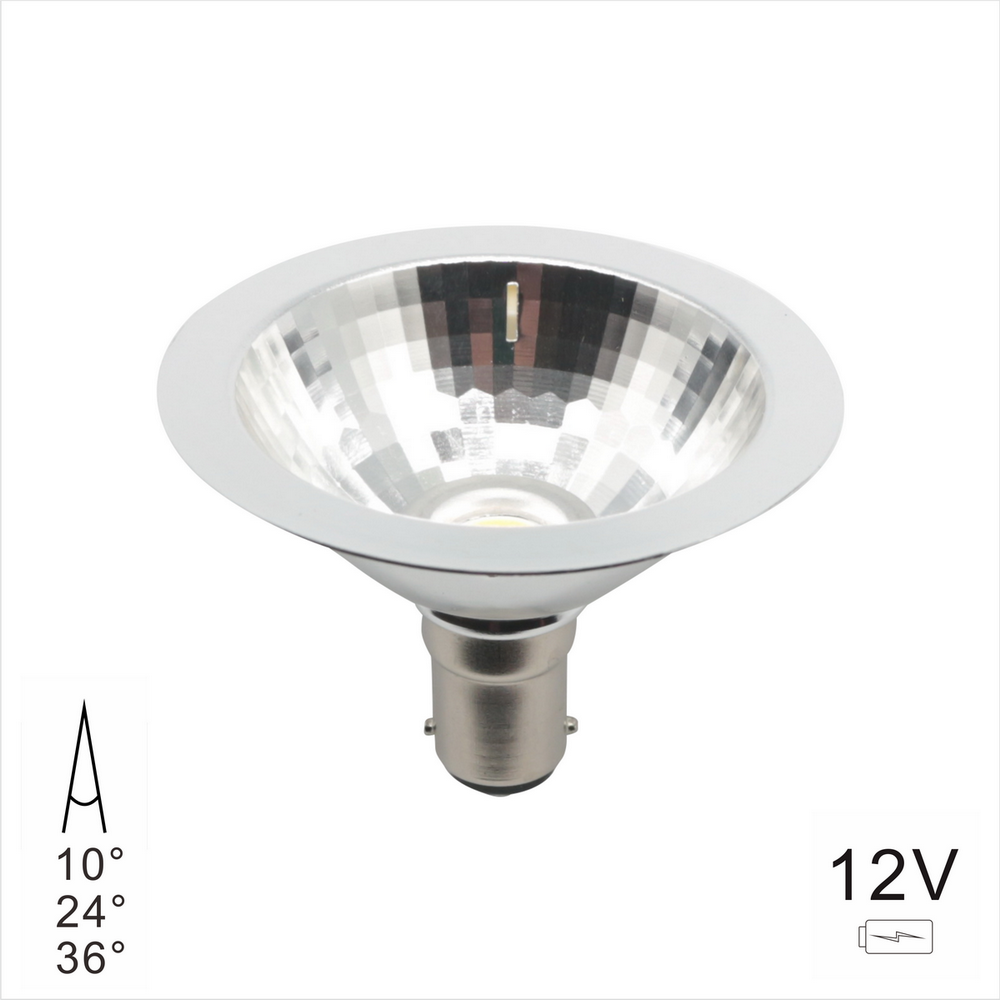

• Front Cover: without cover/lens
• Anti-glare Shade: (with or without) Aluminum shade
• Heat Sink: Aluminum + ceramic

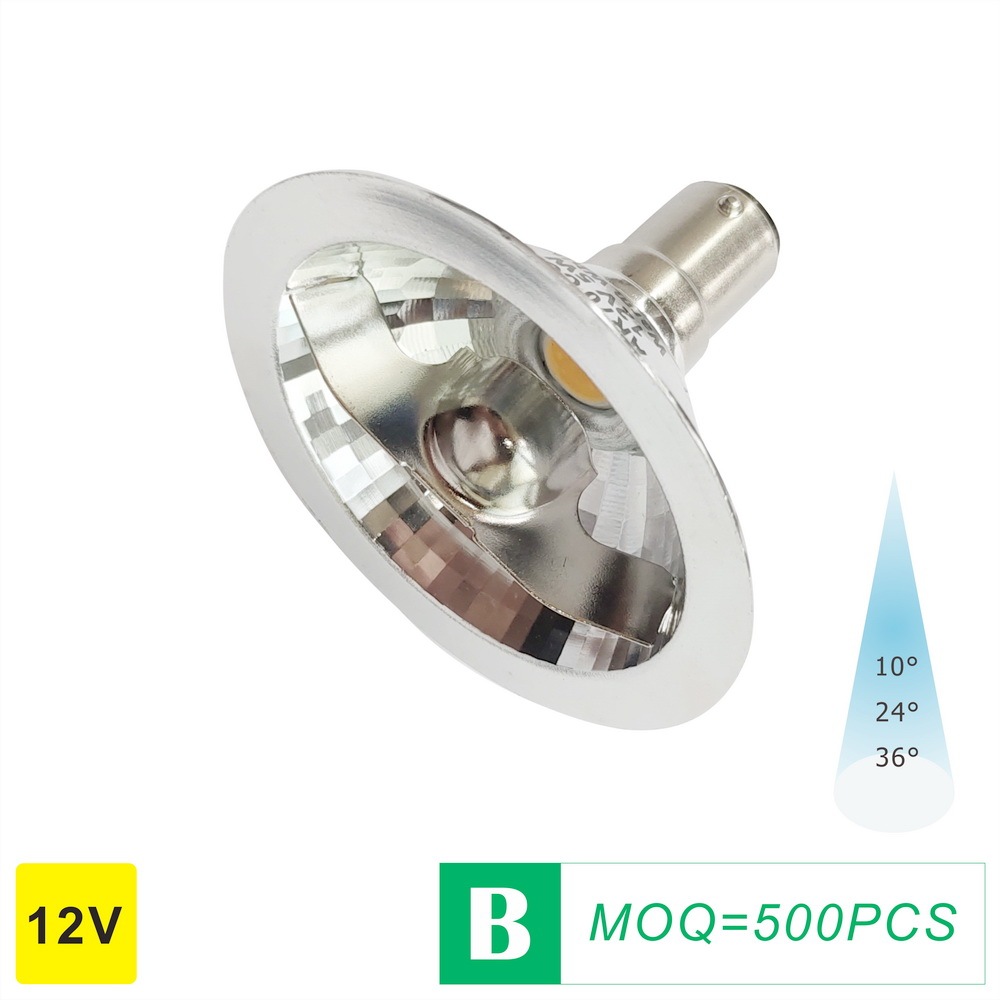

• Beam Angle: 10°/24°/36°
• Lamp Base/Cap: BA15d
• Color Temperature (CCT): 3000K/4200K/6000K±200K
• Color Render Index (CRI/Ra): >80 / >90
• Input Voltage: AC/DC 12V
• Driver Type: IC driver (independent)
• Power Factor (PF): 0.5
• Lifetime Span: 20,000 Hrs
• Warranty: 2 years

Data of the Models

• Model Type: AR70-COB-5W-A01/LV
• Rated Power: 5 Watts

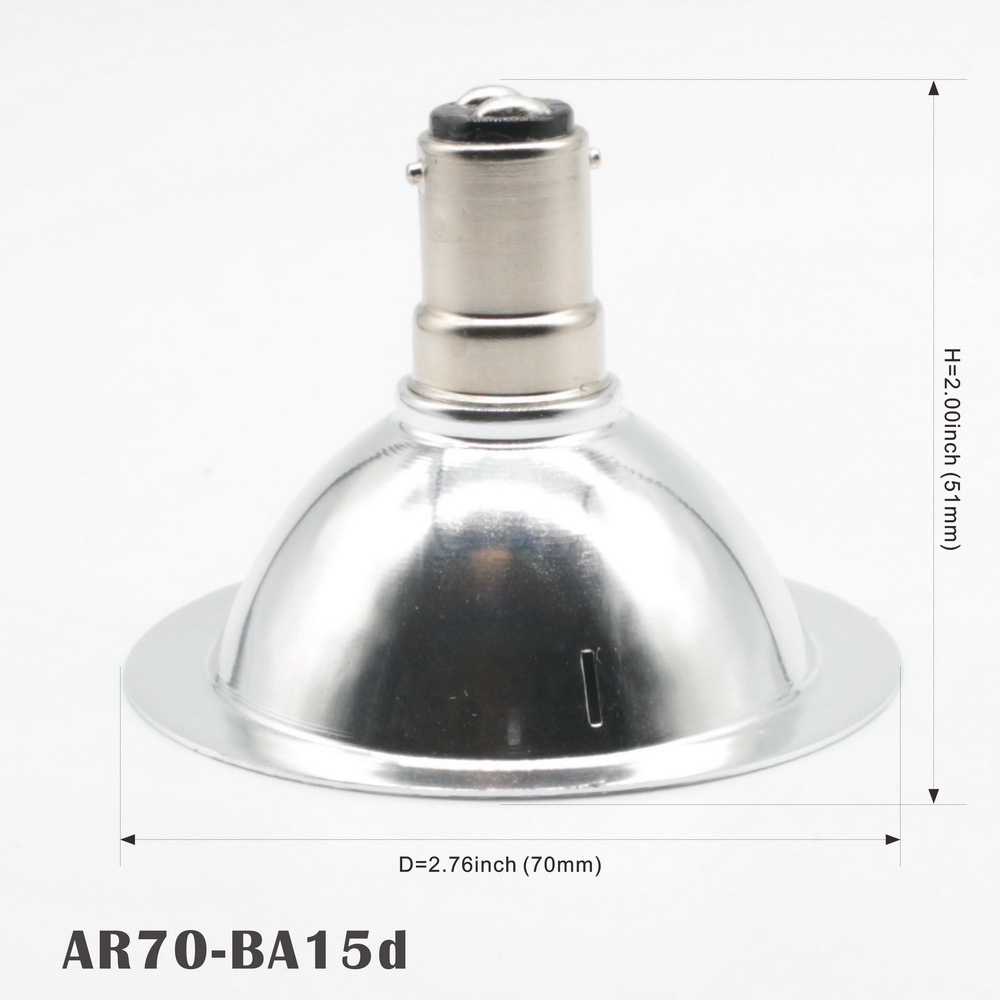

• Diameter (mm/inch): 70mm/2.76inch
• Height (mm/inch): 51mm/2.00inch
• LED Chips: 1*COB (3-5W)
• Luminous Flux: 500lm±10%
• Power Consumption: 5.0W±5%

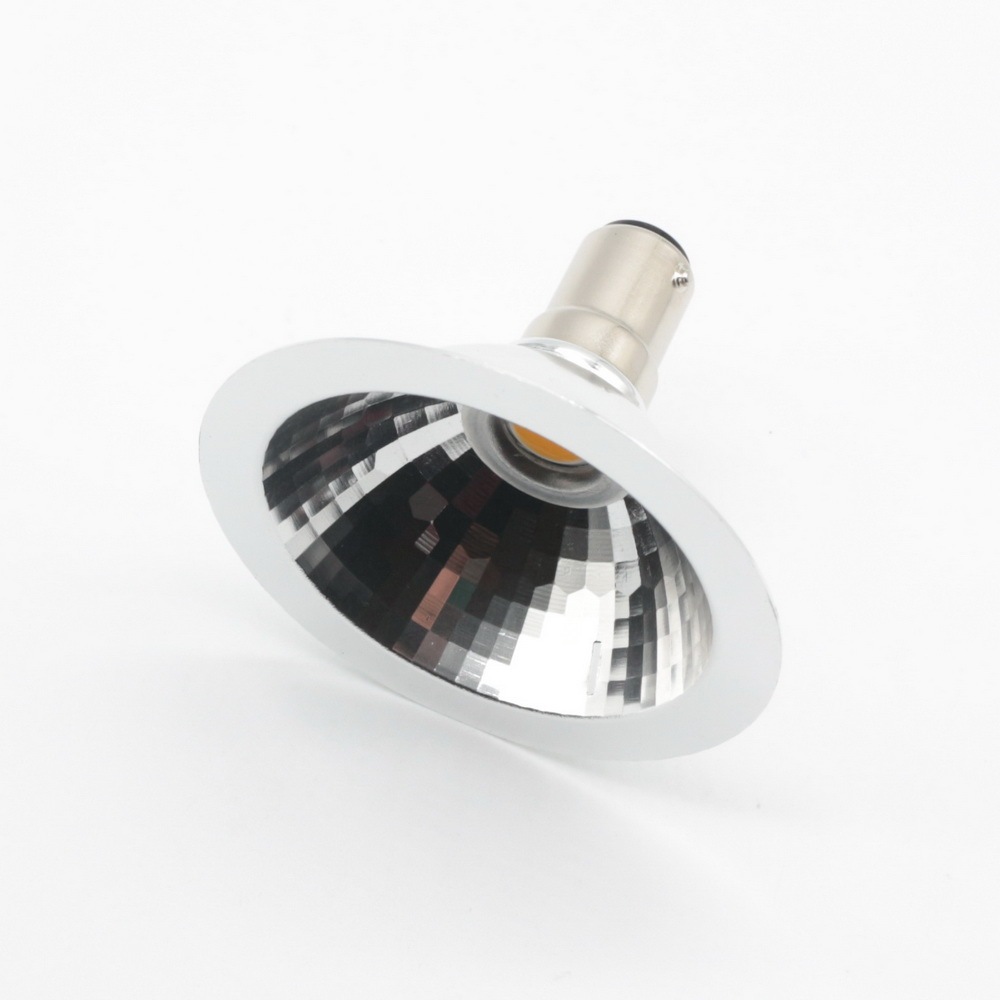

• Lens/Shade: with or w/o shade
• EQ to Halogen: 40W

Conformity/Certification

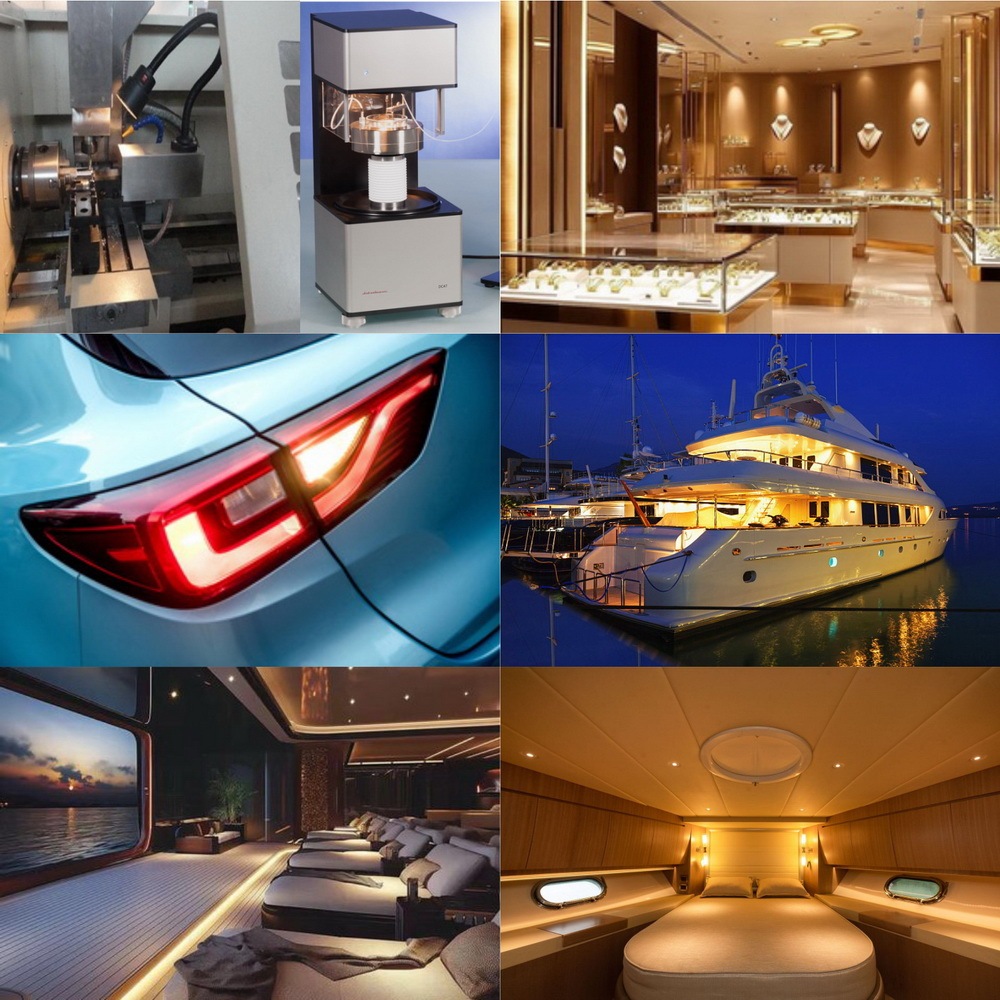

Applications & Typical Light Fixtures

• industrial lighting, equipment lighting, machine lighting, vehicle lighting, auto lighting, ship lighting,
  commercial lighting, display lighting, accent lighting, local lighting, decoration lighting …
• industrial device, machine tool, production line, laboratory, control cabinet, instrument, meter,
  automobile, truck, car, motorbike, passenger liner, yacht, ferry, fishing boat, showroom, boutique, jewel store, book store,
  showcase, show window, museum, gallery, restaurant, café, pub, spa, sauna, bath house, natatorium, kitchen, bathroom, washroom …
• machine light, indicator light, caution light, taillight, rear light, position lamp, clearance lamp, turn signal,
  embedded light, spotlight, track light, downlight, showcase light, display light, Hi-spot …
