Basic Parameters
- Housing Material: flame retardant PBT-Aluminum
- Bulb Material: frost PC
- Heat Sink: Aluminum body shell + MPCB
- Beam/Viewing Angle: 270°
- Lamp Base/Cap: E26/E27
- Color Temperature (CCT): 3000K/4200K/6500K±300K
- Color Render Index (CRI/Ra): >80
- Dimming: dimmable (SCR 10%-100%, by LED dimmer)
- Input Voltage: AC90V-130V/AC170V-265V
- Driver Type: switching IC driver (DOB, no flicker)
- Power Factor (PF): 0.5
- Lifetime Span: 15,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type: A60(A19)-SMD-10W-PA01/A-DIMS
- Diameter (mm/inch): 60mm/2.36in
- Height (mm/inch): 108mm/4.25in
- Rated Power: 10 Watts
- LED Chips: 11*SMD2835
- Power Consumption: 10.0W±5%
- Luminous Flux: 1000lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to Incandescent GLS : 100W
- Model Type: A60(A19)-SMD-12W-PA02/A-DIMS
- Diameter (mm/inch): 60mm/2.36in
- Height (mm/inch): 121mm/4.76in
- Rated Power: 12 Watts
- LED Chips: 13*SMD2835
- Power Consumption: 12.0W±5%
- Luminous Flux: 1200lm±10%
- Lumen Efficiency: 90-100lm/W
- EQ to Incandescent GLS : 125W
- Model Type: A70(A23)-SMD-15W-PA01/A-DIMS
- Diameter (mm/inch): 70mm/2.76in
- Height (mm/inch): 125mm/4.92in
- Rated Power: 15 Watts
- LED Chips: 11*SMD2835
- Power Consumption: 13.5W±5%
- Luminous Flux: 1500lm±10%
- Lumen Efficiency: 100-110lm/W
- EQ to Incandescent GLS : 150W
Conformity/Certification
Features & Advantages

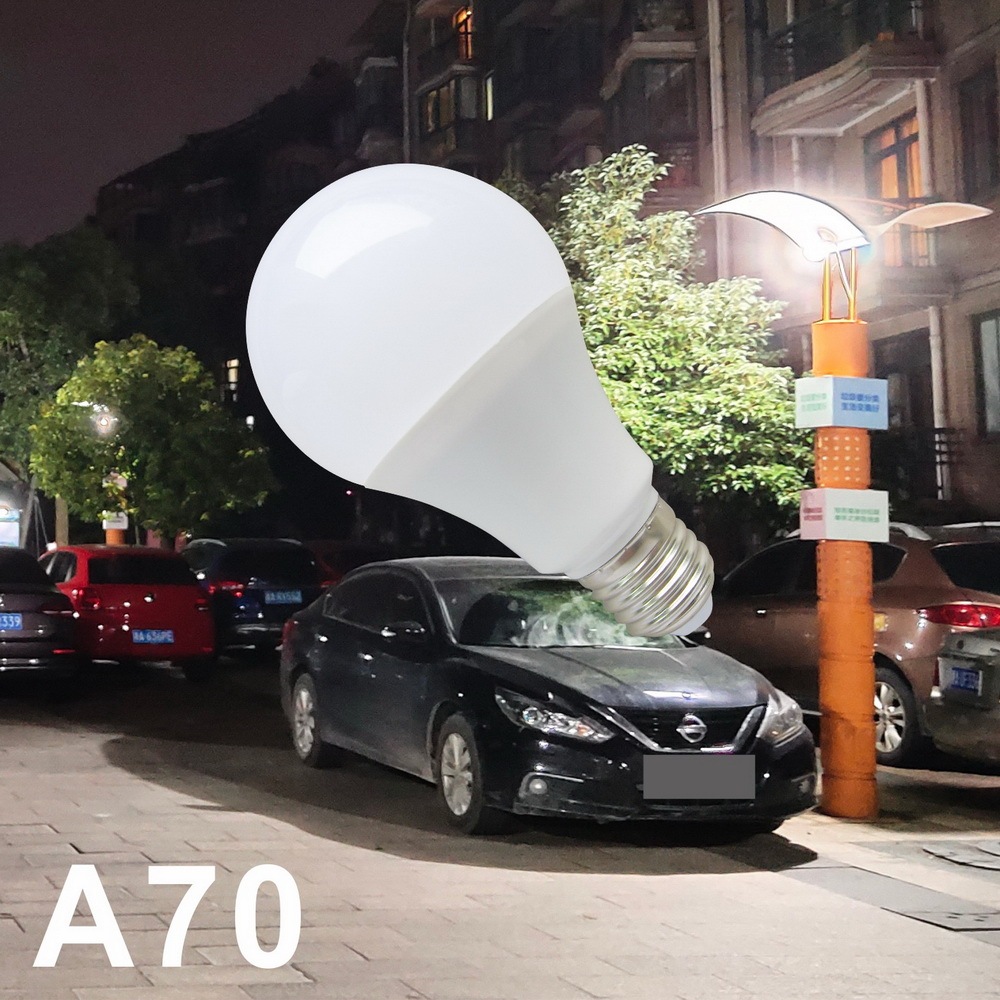

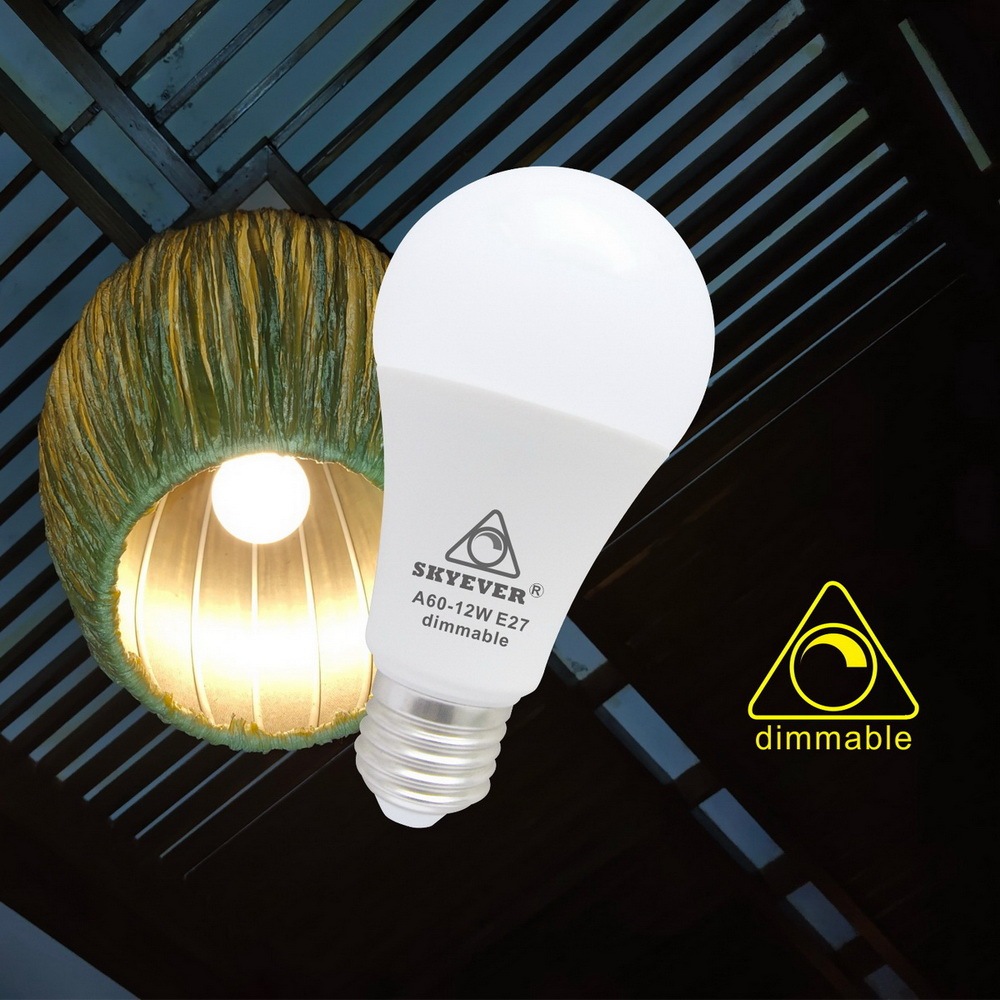

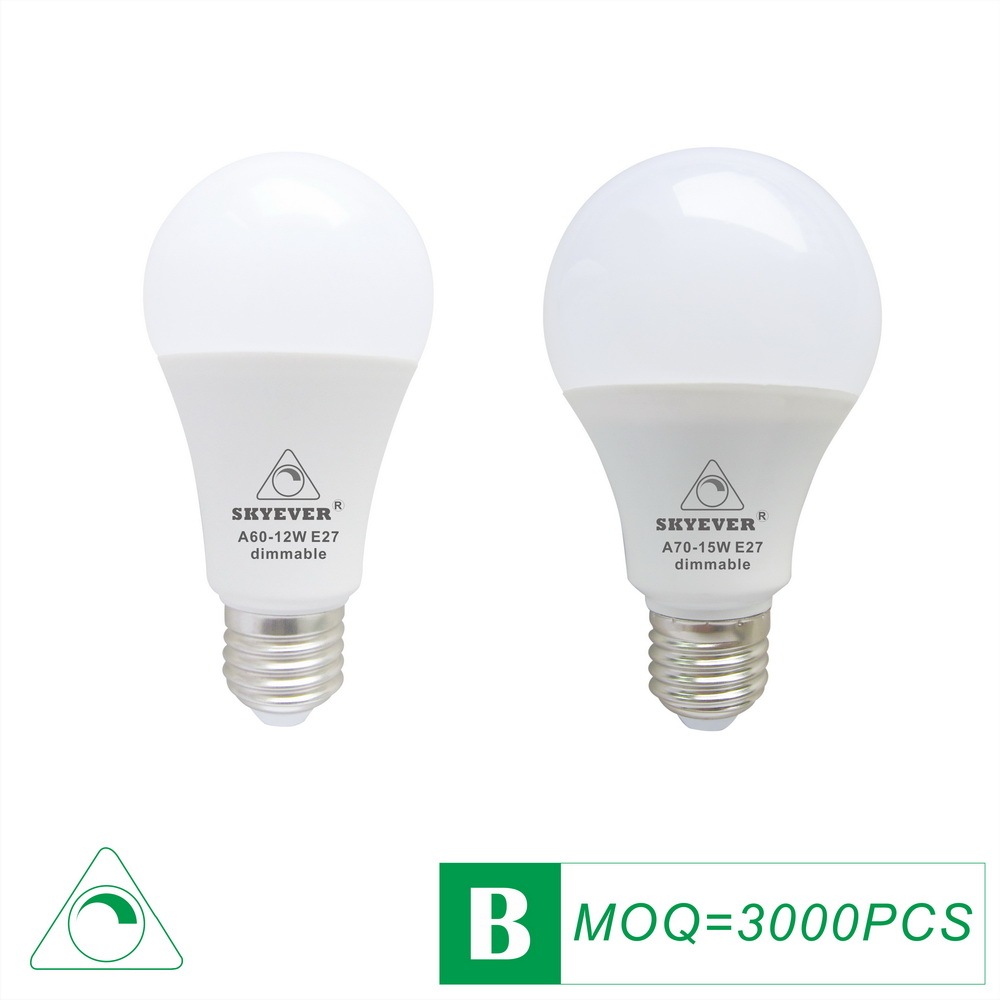

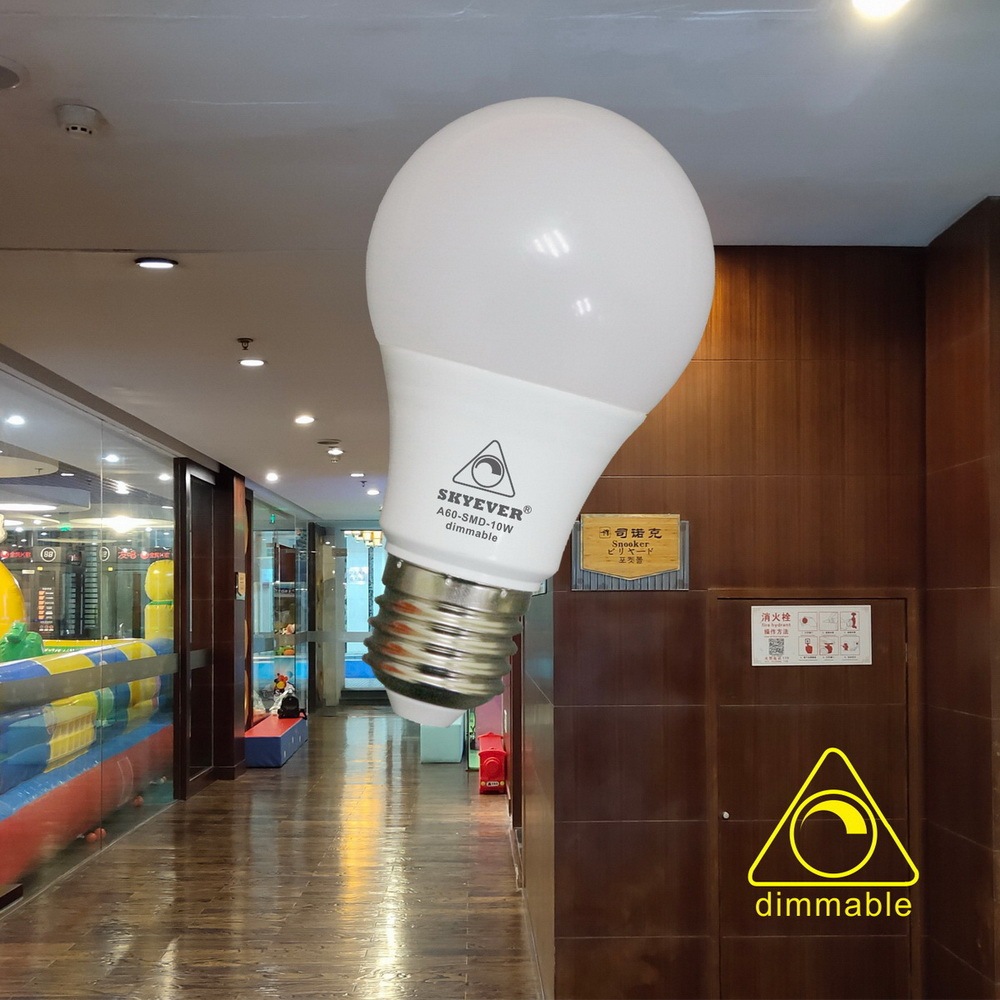

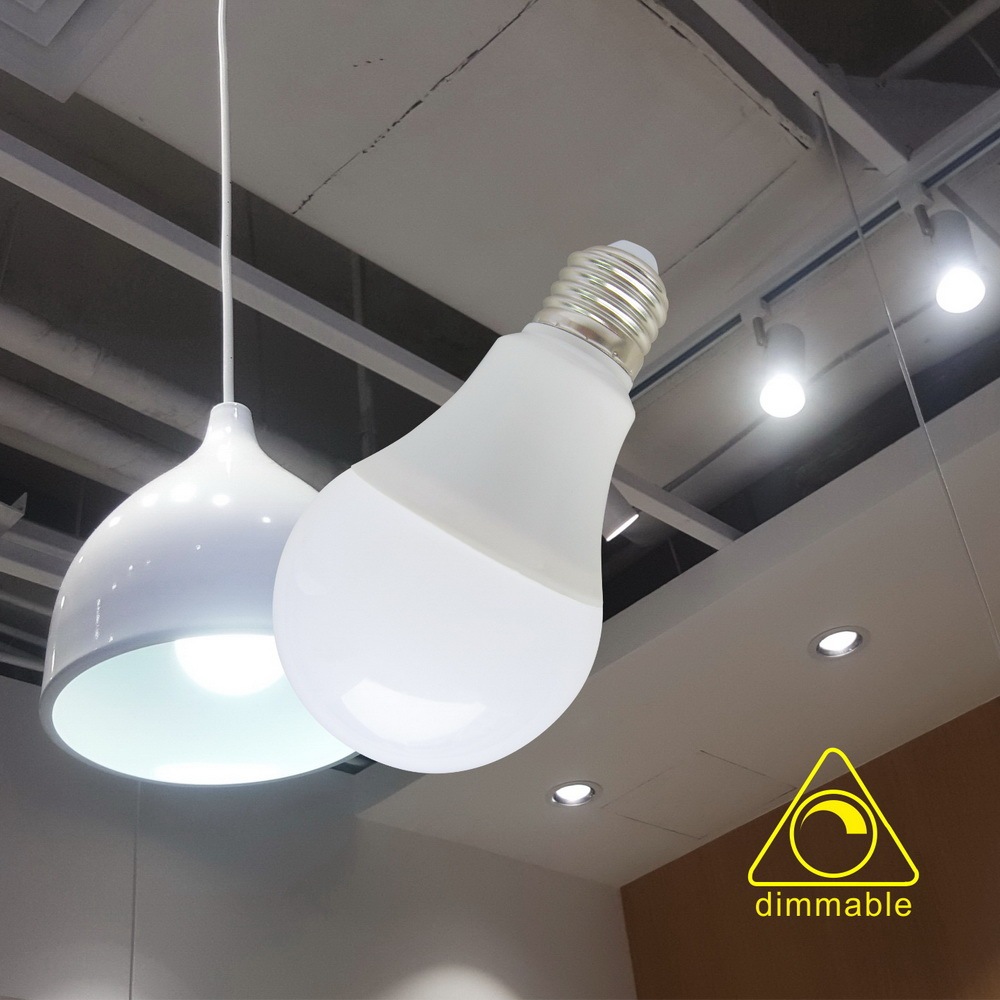

- Retrofit pear shape GLS LED A light bulbs, lower temperature & UV free.
- Up to 100-110lm/W real lumen efficiency, can replace 100W-150W incandescent bulbs.
- SCR (Silicon Controlled) dimmable circuit, smoothly dimmable by LED dimmer from 10% to 100%.
- E26/E27 lamp cap, AC90V-130V or AC170V-265V input, DOB switching IC driver, no flicker.
- Anti-fire PBT-Aluminum housing, good heat dissipation, good for semi-enclosed light fixtures.
- Frost PC bulb, 270° viewing angle, soft light emitting for general lighting use.
Applications & Typical Light Fixtures
- indoor, domestic, household, interior
- general lighting, basic lighting, local lighting, decoration lighting, atmospheric lighting, residential lighting …
commercial lighting, office lighting, billboard lighting …
- balcony, bedroom, living room, dining room, study, washroom, corridor, hallway, vestibule, doorway, (home) garage, basement,
office, reception, conference room, showroom, shop, store, boutique, hotel, lobby, hall, restaurant, café, reading room, rest room,
school, hospital, library, concert hall, church …
- recessed downlight, embedded downlight, ceiling light, pendant lamp, wire light, wall light,
floor lamp, table lamp, mirror lamp, light box, signboard light …
