Basic Parameters
- Housing Material: flame retardant PBT-Aluminum
- Bulb Material: frost PC
- Heat Sink: Aluminum body shell + MPCB
- Beam/Viewing Angle: 180°
- Lamp Base/Cap: E12/E14/E26/E27
- Color Temperature (CCT): 3000K/4200K/6500K±300K
- Color Render Index (CRI/Ra): >80
- Dimming: dimmable (SCR 10%-100%, by LED dimmer)
- Input Voltage: AC90V-130V/AC170V-265V
- Driver Type: switching IC driver (DOB, no flicker)
- Power Factor (PF): 0.5
- Lifetime Span: 15,000 Hrs
- Warranty: 2 years
Data of the Models
- Model Type:

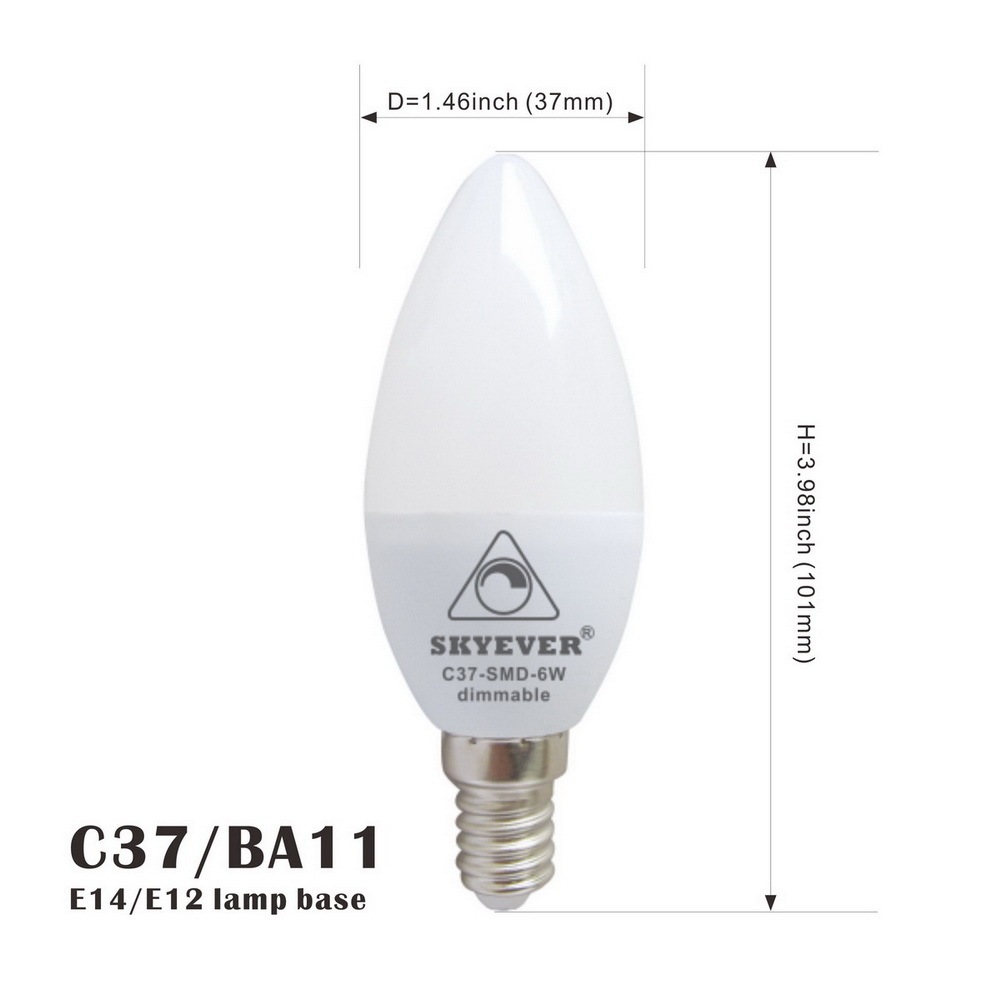

- C37(BA11)-SMD-6W-PA01/A-DIMS-E12/E14
- Diameter (mm/inch): 37mm/1.46inch
- Height (mm/inch): 101mm/3.98inch
- Rated Power: 6 Watts
- LED Chips: 7*SMD2835
- Power Consumption: 6.0W±5%
- Luminous Flux: 540lm±10%
- Lumen Efficiency: 80-90lm/W
- EQ to Incandescent GLS : 60W
- Model Type:

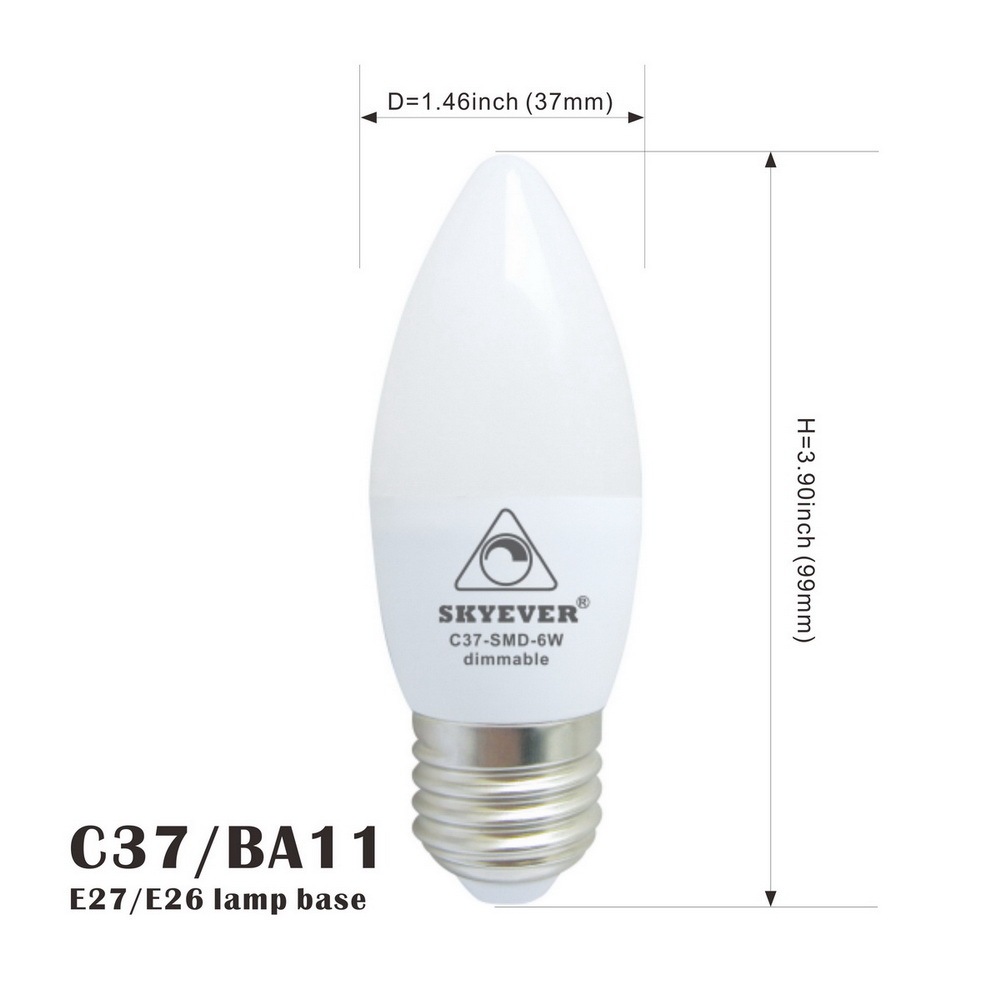

- C37(BA11)-SMD-6W-PA01/A-DIMS-E26/E27
- Diameter (mm/inch): 37mm/1.46inch
- Height (mm/inch): 99mm/3.90inch
- Rated Power: 6 Watts
- LED Chips: 7*SMD2835
- Power Consumption: 6.0W±5%
- Luminous Flux: 540lm±10%
- Lumen Efficiency: 80-90lm/W
- EQ to Incandescent GLS : 60W
- Model Type:

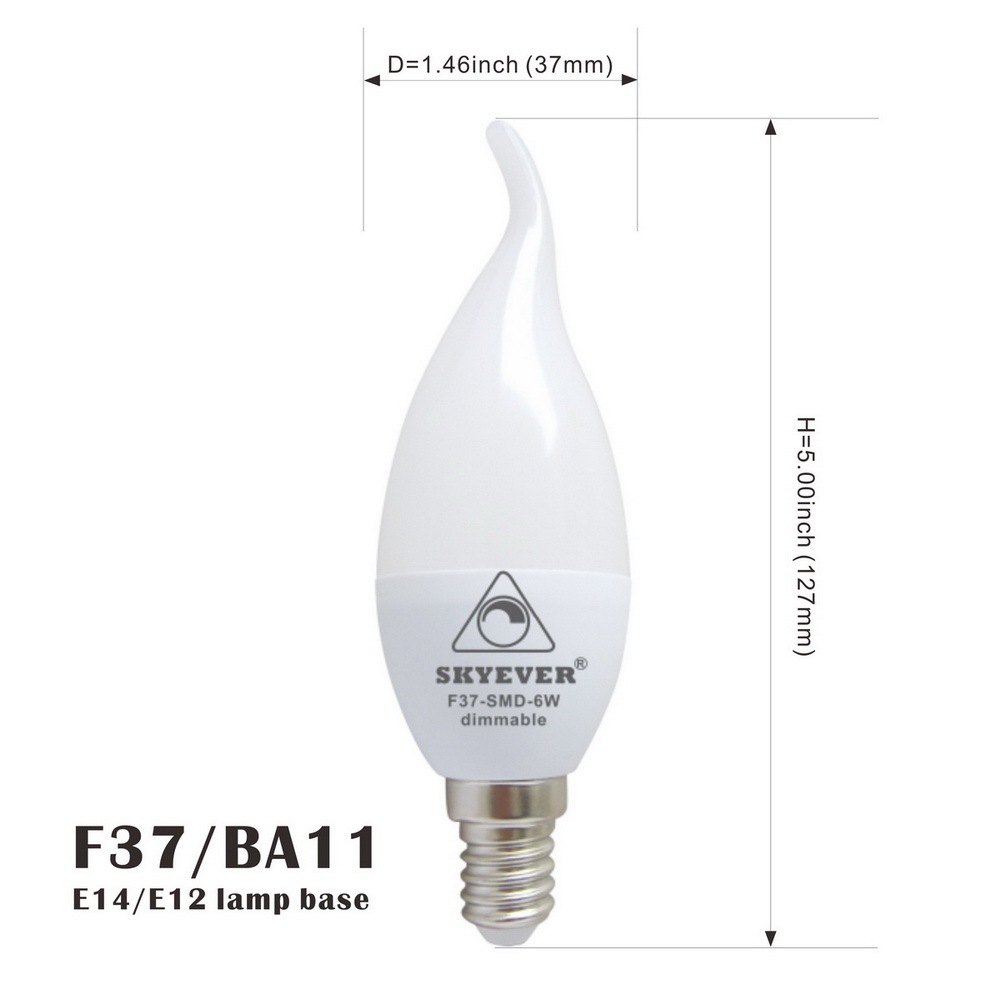

- F37(BA11)-SMD-6W-PA01/A-DIMS-E12/E14
- Diameter (mm/inch): 37mm/1.46inch
- Height (mm/inch): 127mm/5.00inch
- Rated Power: 6 Watts
- LED Chips: 7*SMD2835
- Power Consumption: 6.0W±5%
- Luminous Flux: 540lm±10%
- Lumen Efficiency: 80-90lm/W
- EQ to Incandescent GLS : 60W
Conformity/Certification
Features & Advantages
- Retrofit candle/flame shape small size LED light bulbs, lower temperature & UV free.
- Up to 80-90lm/W real lumen efficiency and 6W real power, can replace 50W-60W incandescent bulb.
- SCR (Silicon Controlled) dimmable circuit, smoothly dimmable by LED dimmer from 10% to 100%.
- E12/E14 or E26/E27 lamp cap, AC90V-130V or AC170V-265V input, DOB switching IC driver, no flicker.
- Anti-fire PBT-Aluminum housing, good heat dissipation, good for semi-enclosed light fixtures.
- Frost PC bulb, 180° viewing angle, soft light emitting for basic lighting use.
Applications & Typical Light Fixtures
- indoor, domestic, household, interior,
- basic lighting, local lighting, decoration lighting, atmospheric lighting, residential lighting, commercial lighting …
- bedroom, living room, dining room, washroom, toilet, study, corridor, aisle, vestibule, stairwell,
- shop, store, boutique, shopping mall, hotel, inn, lobby, hall, restaurant, café, bar, pub, club, ballroom, KTV, casino, cinema, theater, church …
- ceiling light, pendant lamp, wire light, chandelier, crystal lamp, wall light, candelabra, sconce, mirror lamp, mirror front lamp …
