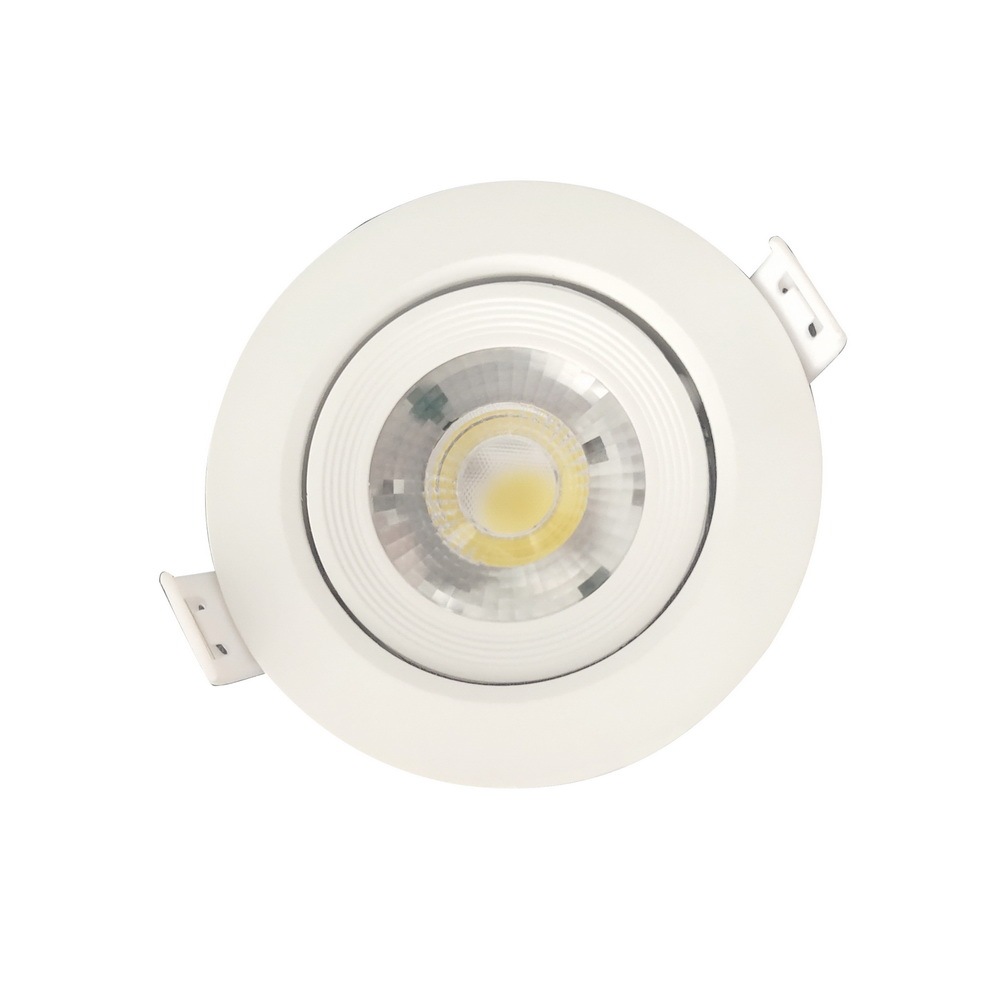

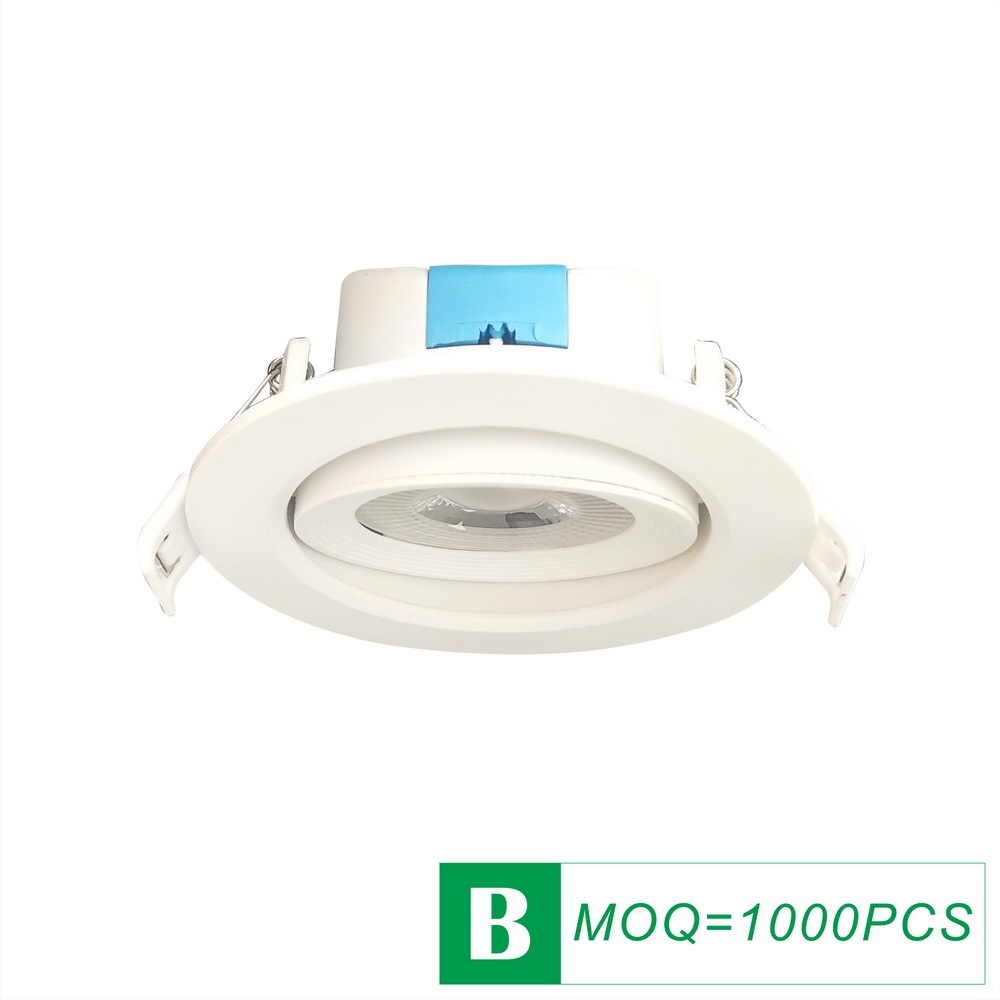

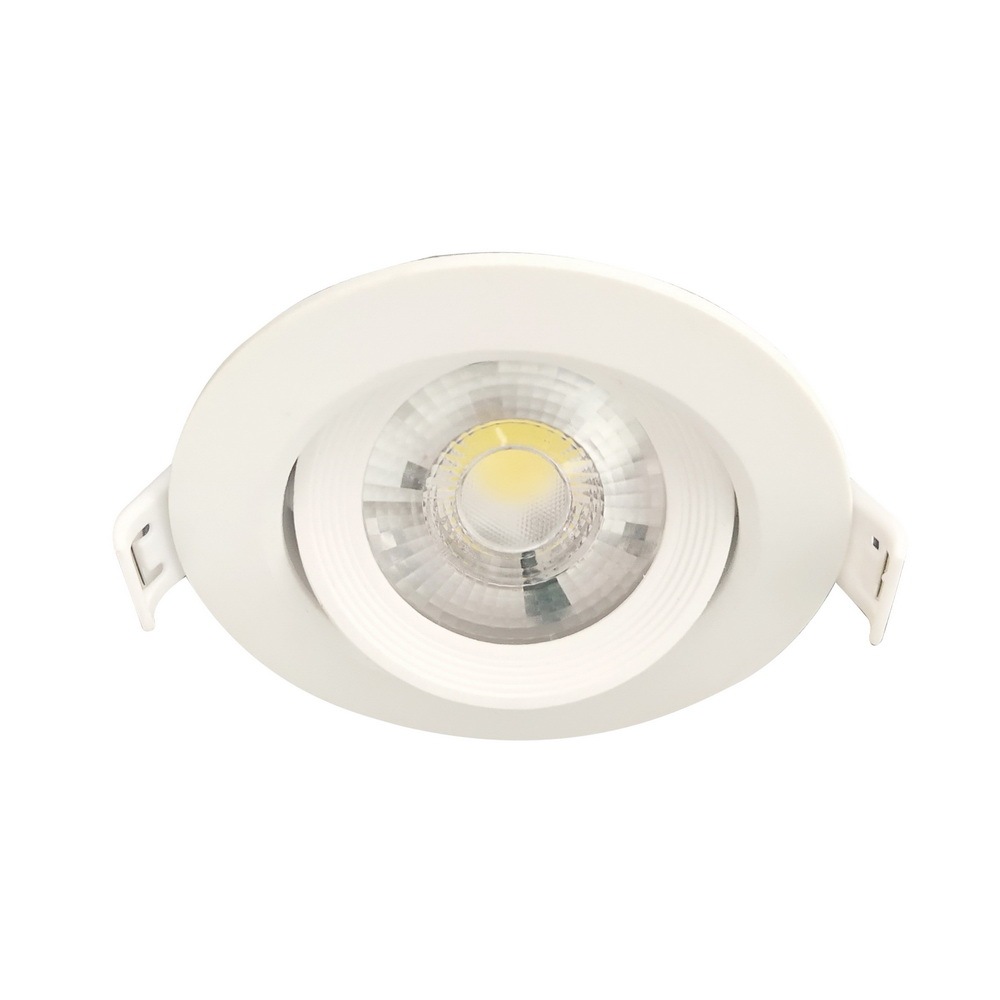

Plastic-Aluminum LED Downlight Spot 2 INCH 7 Watts AC100-240V Rotatable

Basic Parameters

• Housing Material: PBT-Aluminum
• Lens Material: PMMA with grid
• Beam Angle: 38°
• Rotative Angle: 100°
• Color Temperature (CCT): 3000K/4200K/6500K±300K
• Color Render Index (CRI/Ra): >80 / >90
• Dimming: non-dimmable
• Input Voltage: AC 100V-240V
• Driver Type: switching IC driver
• (independent, build-in, no flicker)
• Power Factor (PF): 0.5
• Lifetime Span: 15,000 Hrs
• Warranty: 2 years

Data of the Models

• Model: DL-SMD-7W-PA01/A3
• Rated Power: 7 Watts
• Diameter (D): 90mm/3.54in
• Overall Height (H): 40mm/1.58inch
• Cut-out: 75mm/2.95inch
• LED Chips: 8*SMD2835
• Power Consumption: 7.0W±5%
• Luminous Flux: 560lm±10%
• Lumen Efficiency: 70-80lm/W

Conformity/Certification

Features & Advantages

• 2” LED downlight featured with anti-fire PBT-Al housing and PMMA lens with grid.
• Changeable light emitting direction, up to 100° rotative angle, convenient for lighting design.
• 38 degree narrow beam angle, uniform and even facular without dark area, no flicker.
• Ultra-bright SMD LED chips LM80 passed, >90 CRI model available for high-end commercial use.
• AC 100-240V wide input voltage, work well under different mains voltage, good for all countries.
• Independent switching IC driver build-in, easy wiring without outer driver.

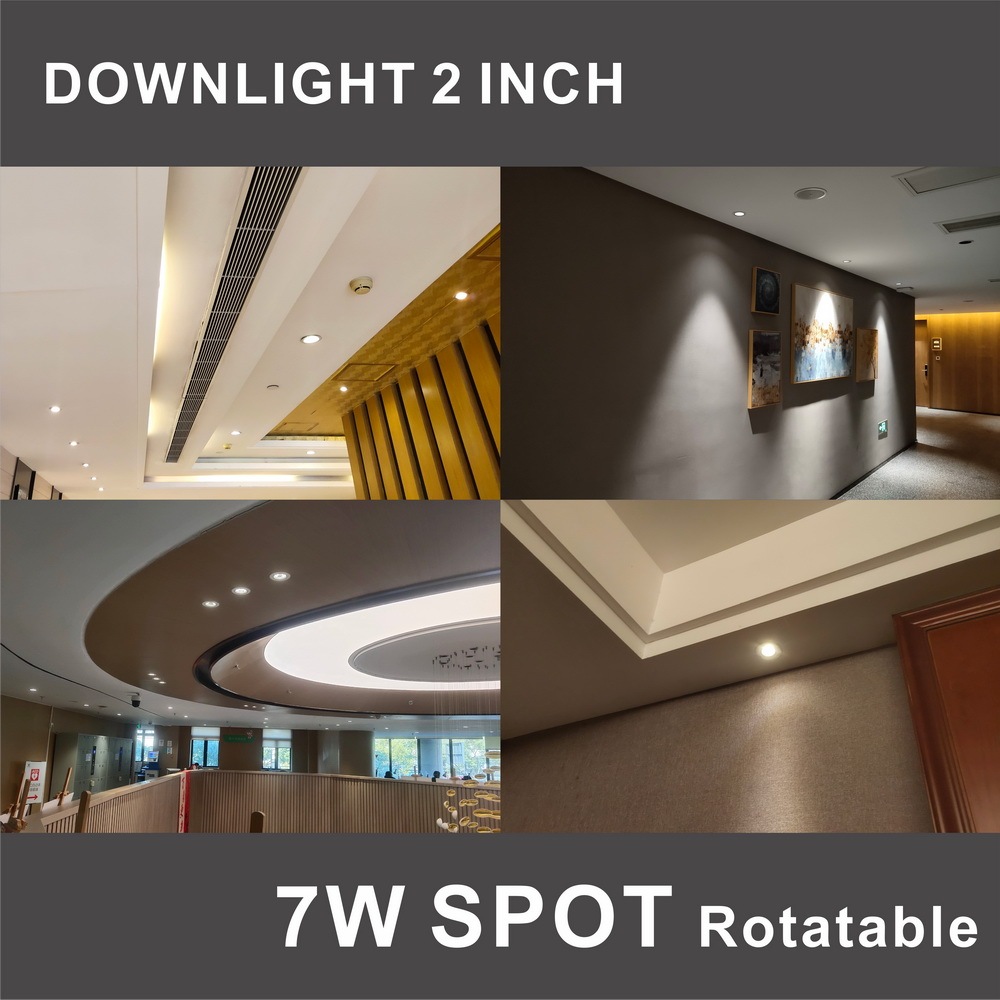

Applications & Typical Light Fixtures

• indoor, domestic, household, interior
• general lighting, local lighting, accent lighting, decoration lighting, residential lighting, commercial lighting, office lighting …
• bedroom, living room, dining room, bathroom, washroom, toilet, corridor, aisle, hallway, vestibule, office, reception, meeting room, showroom,
  shop, store, show window, hotel, inn, lobby, restaurant, café, bar, pub, club, dance hall, KTV, casino, reading room, rest room, school, hospital …
