Basic Parameters
- Housing Material: flame retardant PBT-Aluminum
- Bulb Material: frost PC
- Heat Sink: Aluminum body shell + MPCB
- Beam/Viewing Angle: 220°
- Lamp Base/Cap: E12/E14/E26/E27
- Color Temperature (CCT): 3000K/4200K/6500K±300K
- Color Render Index (CRI/Ra): >80
- Dimming: dimmable (SCR 10%-100%, by LED dimmer)
- Input Voltage: AC90V-130V/AC170V-265V
- Driver Type: switching IC driver (DOB, no flicker)
- Power Factor (PF): 0.5
- Lifetime Span: 15,000 Hrs
- Warranty: 2 years
Data of the Models

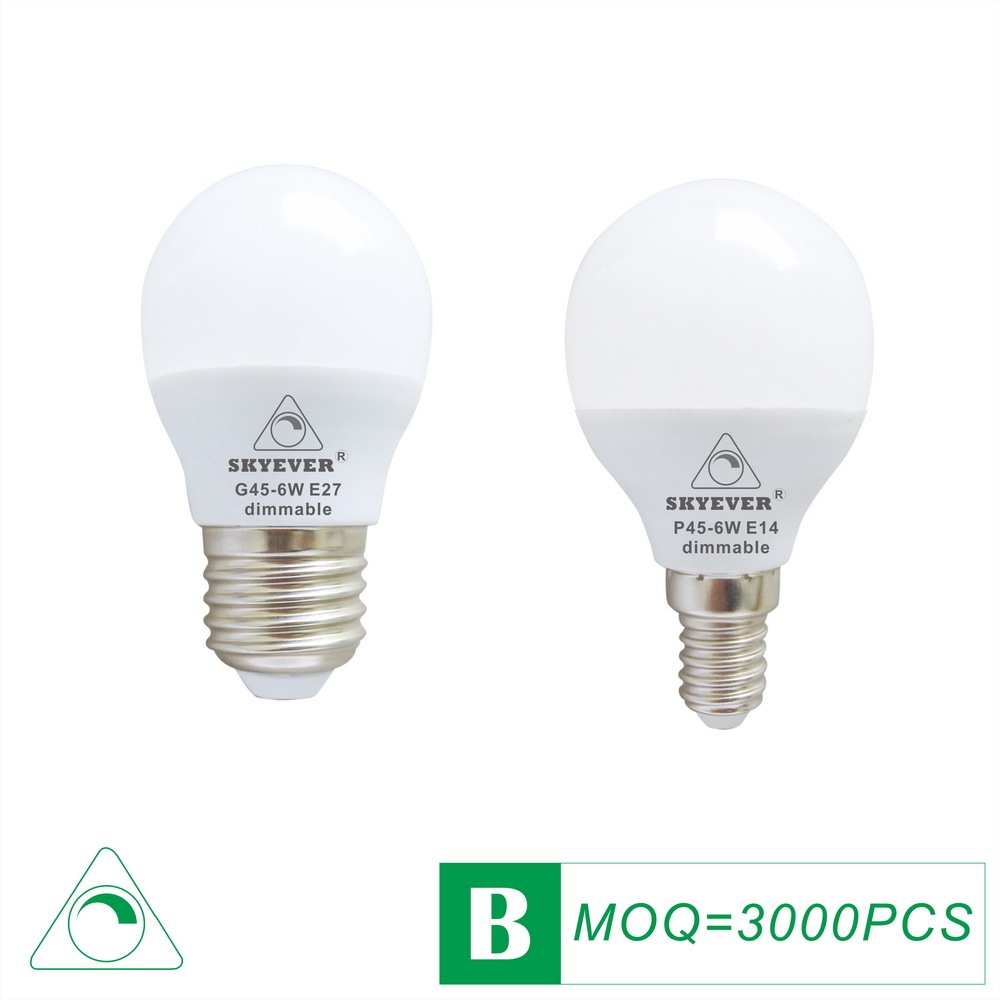

- Model Type:

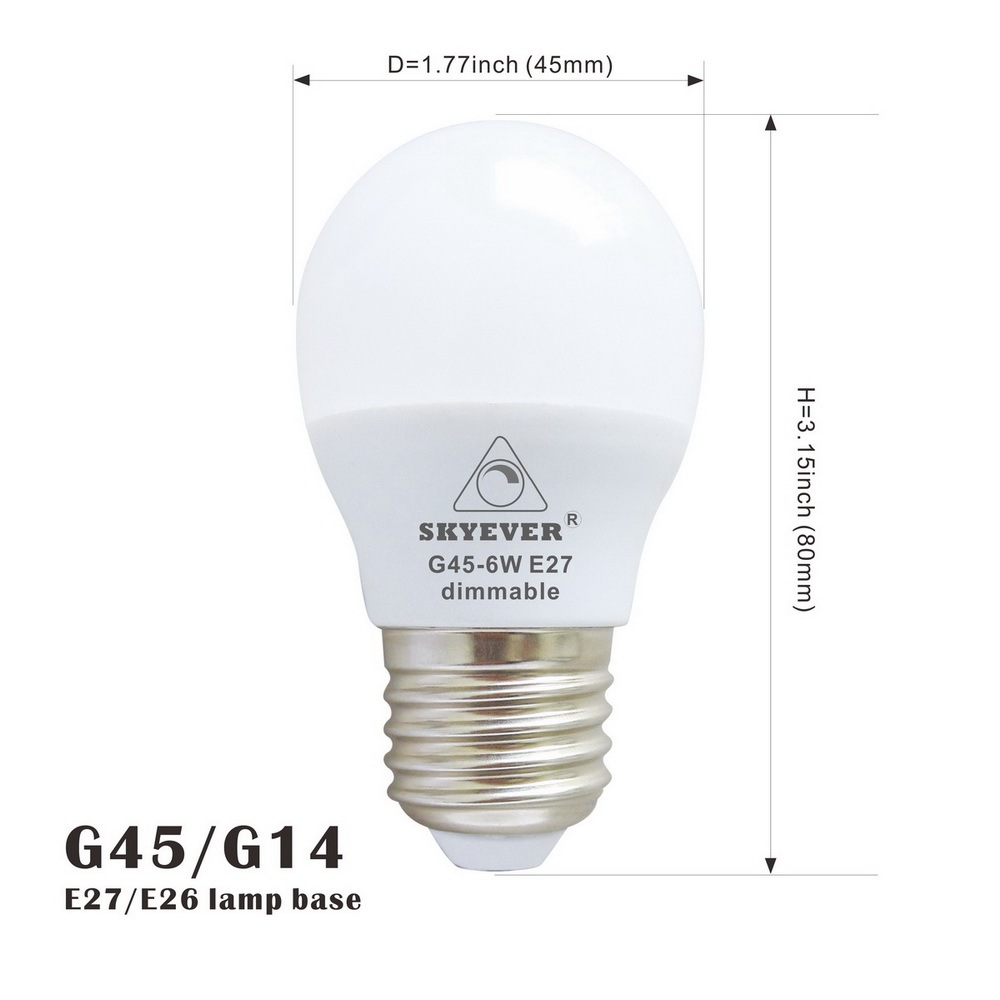

- G45(G14)-SMD-6W-PA01/A-DIMS-E26/E27
- Diameter (mm/inch): 45mm/1.77in
- Height (mm/inch): 80mm/3.15in
- Rated Power: 6 Watts
- LED Chips: 7*SMD2835
- Power Consumption: 6.0W±5%
- Luminous Flux: 540lm±10%
- Lumen Efficiency: 80-90lm/W
- EQ to Incandescent GLS : 60W
- Model Type:

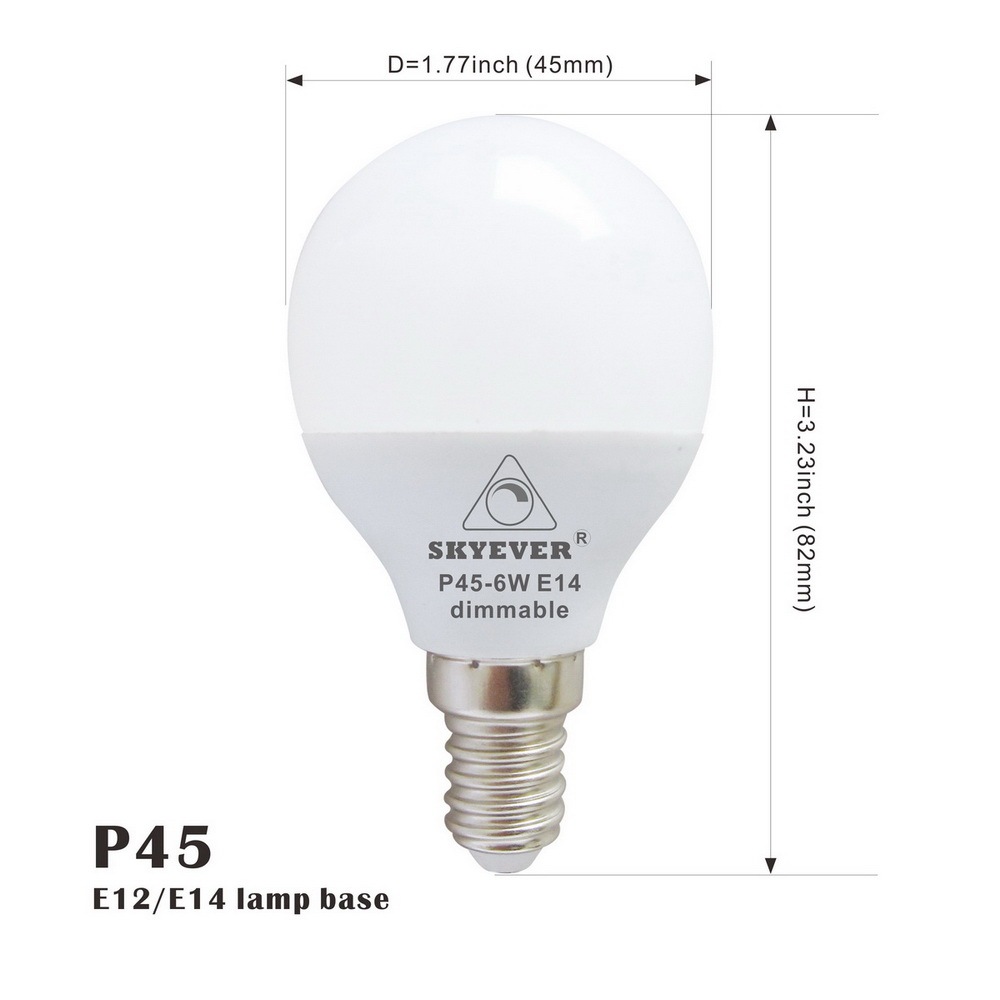

- P45(G14)-SMD-6W-PA01/A-DIMS-E12/E14
- Diameter (mm/inch): 45mm/1.77in
- Height (mm/inch): 82mm/3.23in
- Rated Power: 6 Watts
- LED Chips: 7*SMD2835
- Power Consumption: 6.0W±5%
- Luminous Flux: 540lm±10%
- Lumen Efficiency: 80-90lm/W
- EQ to Incandescent GLS : 60W
Conformity/Certification
Features & Advantages
- Retrofit global shape small size LED light bulbs, lower temperature & UV free.
- Up to 80-90lm/W real lumen efficiency and 6W real power, can replace 50W-60W incandescent bulb.
- SCR (Silicon Controlled) dimmable circuit, smoothly dimmable by LED dimmer from 10% to 100%.
- E12/E14 or E26/E27 lamp cap, AC90V-130V or AC170V-265V input, DOB switching IC driver, no flicker.
- Anti-fire PBT-Aluminum housing, good heat dissipation, good for semi-enclosed light fixtures.
- Frost PC bulb, 220° viewing angle, soft light emitting for basic lighting use.
Applications & Typical Light Fixtures
- indoor, domestic, household, interior,
basic lighting, local lighting, decoration lighting, atmospheric lighting, residential lighting, furniture lighting, commercial lighting …
- bedroom, living room, dining room, washroom, toilet, study, corridor, aisle, vestibule, stairwell, wardrobe, cabinet, vanitory,
shop, store, boutique, shopping mall, hotel, inn, lobby, hall, restaurant, café, bar, pub, club, ballroom, KTV, casino, cinema, theater, church …
- recessed/embedded downlight, ceiling light, pendant lamp, wire light, chandelier, crystal lamp, berry light,
- wall light, candelabra, sconce, mirror lamp, mirror front lamp, cabinet light, vanity light …
