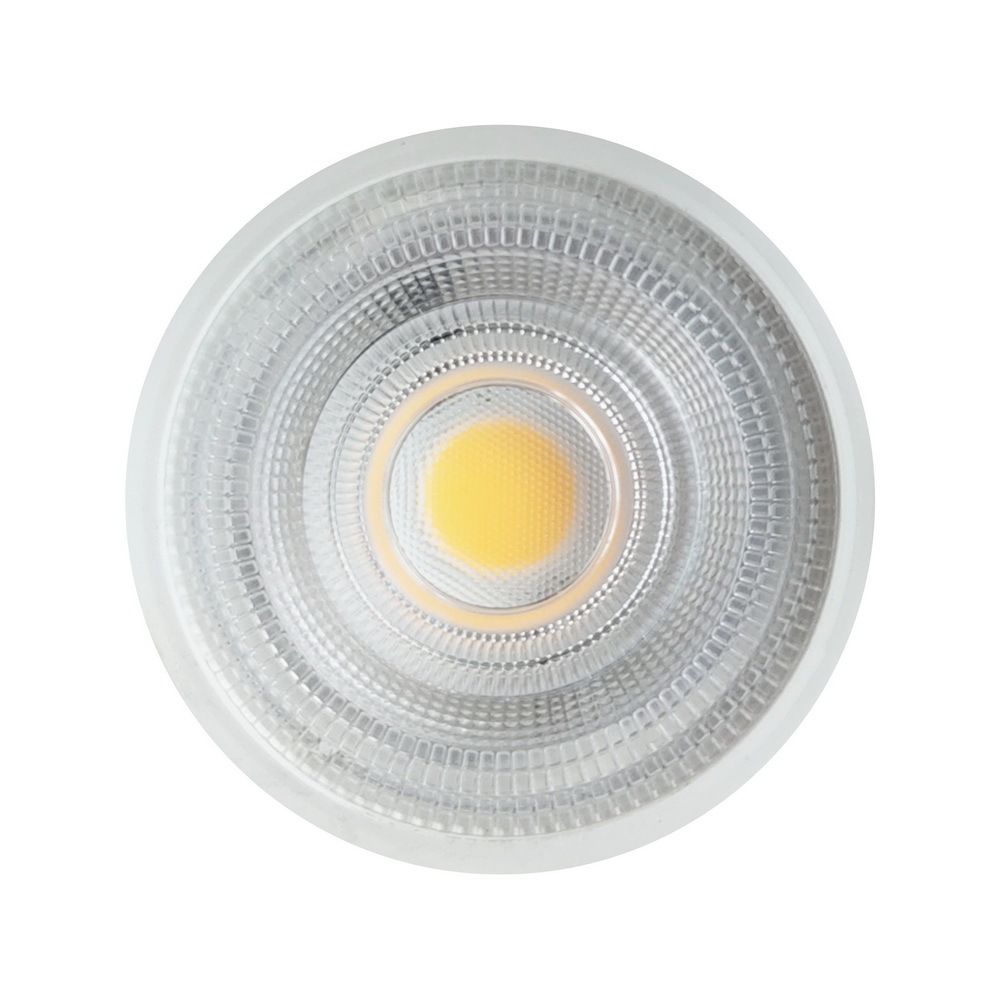

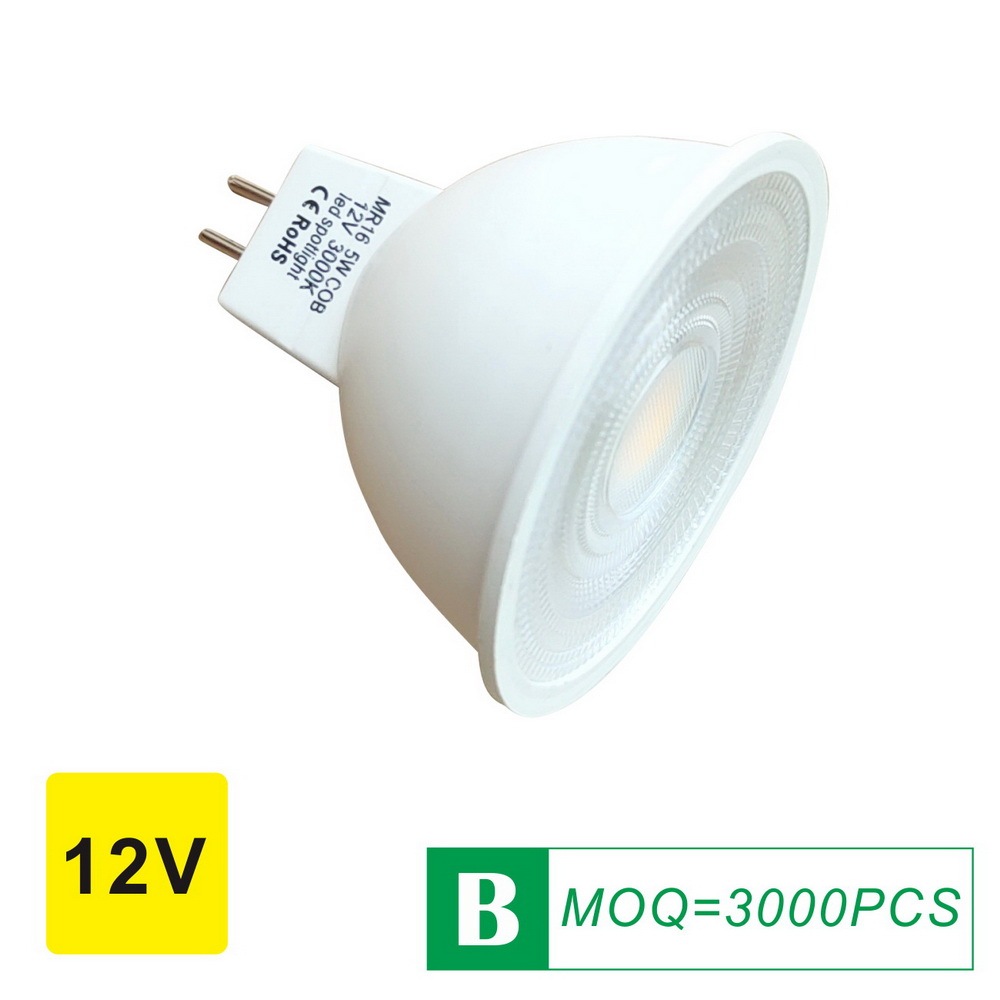

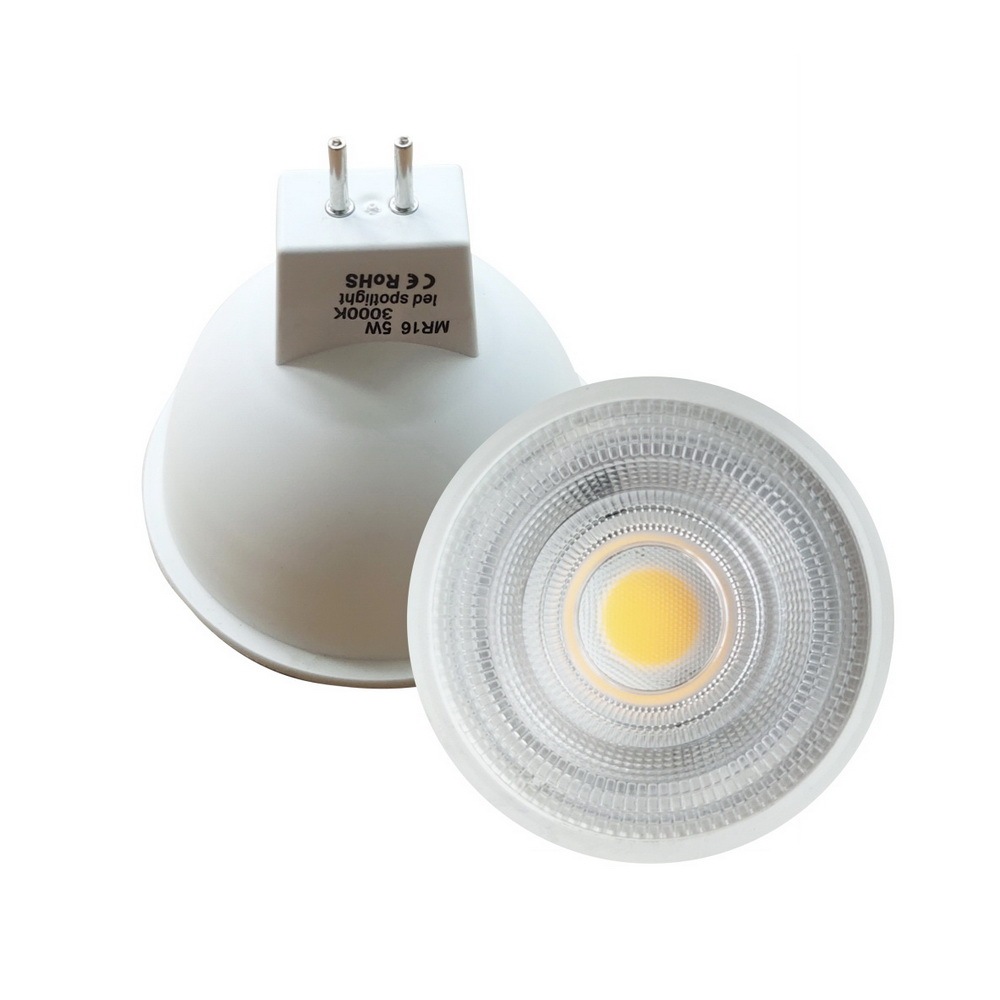

LED Spot Lamp Bulb MR16 COB 5 Watts AC/DC 12 Volts with Lens NSL 38 Degree

Basic Parameters

• Housing Material: flame retardant PBT-Aluminum
• Front Cover: PMMA lens with grid
• Heat Sink: Aluminum body shell + MPCB
• Beam Angle: 38°
• Color Temperature (CCT): 3000K/4200K/6500K±300K
• Color Render Index (CRI/Ra): >80 / >90
• Dimming: Non-dimmable
• Input Voltage: AC/DC 12V
• Driver Type:
• switching IC driver (independent, no flicker)
• Power Factor (PF): 0.5
• Lifetime Span: 15,000 Hrs
• Warranty: 2 years

Data of the Models

• Model Type: MR16-COB-5W-PA02/LV
• Lamp Base/Cap: GU5.3
• Rated Power: 5 Watts
• Diameter (mm/inch): 50mm/1.97inch
• Height (mm/inch): 54mm/2.13inch
• LED Chips: 1*COB (3-5W)
• Power Consumption: 5.0W±5%
• Luminous Flux: 450lm±10%
• Lumen Efficiency: 80-90lm/W
• Halogen Equivalent: 50W

Conformity/Certification

Applications & Typical Light Fixtures

• indoor, domestic, household, interior
• spot lighting, local lighting, atmospheric lighting
• residential lighting … commercial lighting, office lighting …
• bedroom, living room, dining room, study, kitchen, corridor, passage, aisle, hallway, vestibule, entry …
• office, reception, meeting room, showroom, department store, boutique, shopping mall, supermarket, plaza, outlets,
  show window, museum, exhibition hall, hotel, lobby, restaurant, café, canteen, reading room, rest room, kindergarten, hospital, nursery, library ...
• ceiling downlight, embedded downlight, recessed downlight, track light, spotlight, mirror front lamp, fresco lamp, pot-light, Hi-pot …


• battery/solar powered, off-grid, off-shore, Vehicle Lighting, Ship Lighting
• mobile home, motorhome, recreational vehicle (RV), touring car, automobile, bus, metro, train, yacht, passenger liner, aircraft …
  reading light, cabinet light
